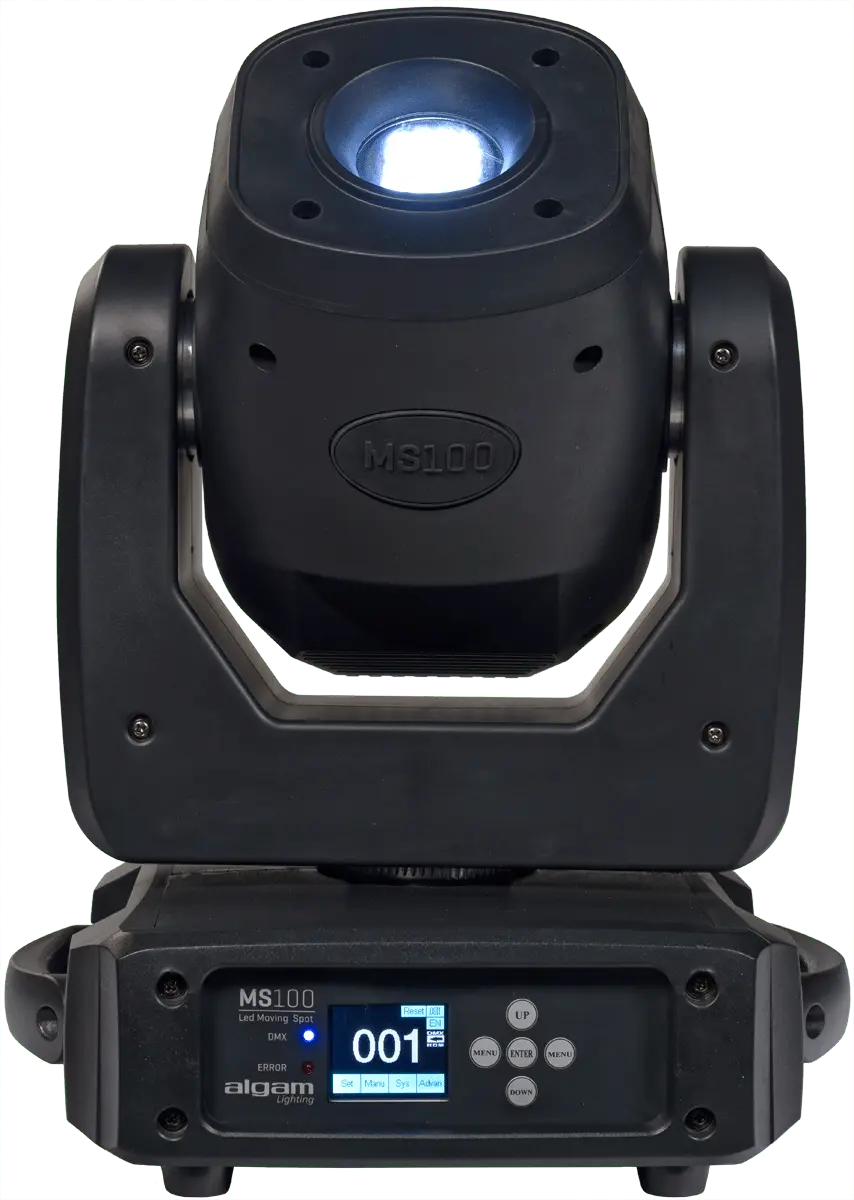

The MS100 features a powerful 100W white LED light source, two gobo wheels, one fixed and one motorised, and a colour wheel for a wide range of impressive effects in a successfully designed frame. This featherweight device developed for lighting professionals weighs only 5.9kg but is packed with resources. With its motorised focus and 6-facet variable speed prism, the MS100 is suitable for a wide range of fixed and mobile applications. Its quiet motorisation allows panning up to 540° and tilting up to 270° with tremendous flexibility and speed. The MS100 moving head can be controlled by DMX (14 channels) or configured via the integrated control panel. It can also operate in automatic or music-controlled mode. This professional projector has a power supply with Powercon input and output for chaining devices and 2 OMEGA sockets for safe installations.



Technical specifications

- Light sources: 1 x 100W white LED spotlight (colour effects, 1/2 colour, rainbow, strobe)
- Average life span: 50,000 hours
- Colour temperature: 7000 K - 7500 K
- Dimmer: 0-100%, linear curve
- Beam angle: 15°
- Movements: PAN up to 540° / TILT up to 270°
- Focus: motorised
- Fixed gobo wheel: 7 gobos + open, wheel rotation and SHAKE effect
- Rotating gobo wheel: 6 gobos + open, wheel rotation, gobo rotation and SHAKE effect
- Colour: 7-colour wheel + white, half colours and rainbow effect
- Prism: 6 facets with variable rotation speed
- Modes: Auto, Music-controlled, Random and DMX
- Number of DMX channels: 14
- DMX input/output: XLR 3-pin
- Display: LCD screen with 5 control buttons
- Frame: plastic
- Installation and fixings: 1 OMEGA socket with quarter turn locking
- Power connector: locking socket (input/output)
- Supply voltage: 100-240V, 50/60Hz
- Power consumption: 150W
- Weight and dimensions: 5.9kg, 280 x 215 x 370mm
- Protection class: IP20 (indoor use)
- Supplied with power cable and velcro cable tie, yoke mounting bracket and safety sling
